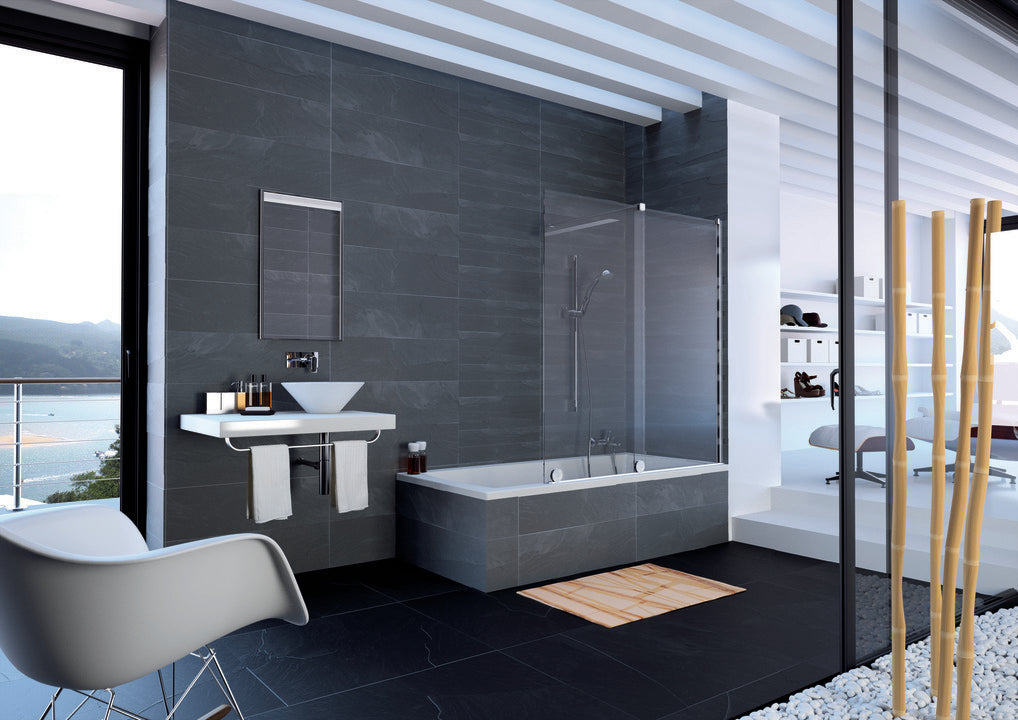

Xtensa pure Bath screen Sliding door, 1-panel with fixed segment XT06

• For installation on a bathtub
• Partially framed system with a sliding door segment, opening to one side
only, with one fixed segment
• Glazing with 6 mm (fixed segment) and 8 mm (door) single-pane safety
glass according to DIN EN 12150, optionally with the easy-care HÜPPE
Anti-Plaque surface finish
• High-quality and especially slim wall profile made of aluminium
• Optionally available with comfort handle Xtensa, ceiling connection
• Adjustable in the wall profile 12 mm. Additionally up to 200 mm via the
overlapping glass elements
• A minimum even/flat surface of 50 mm and a tray rim or floor area of 50
mm is required for installation.
• Incl. HÜPPE sealing system – mounting without visible screws in the area
of the wall profile
• With stabilizer (inside)
• Internal flush-fitting roller guides facilitate easy cleaning
• High-quality roller guides made of polished stainless steel – flush-fitting
on the inside and adjustable in height
• Floor profile (height 10 mm)
• Continuous magnetic strips and sealing profiles
• Sealing according to DIN 14428
• Made in Germany
• Ten-year availability guarantee on wear parts after purchase of the
product
• Quality assurance system certified according to DIN EN ISO 9001:2015
• Energy management certified according to DIN EN 50001:2011
• Included in delivery: fastening materials, cleaningtool, installation instructions

An even/flat surface of 50 mm must be available.
